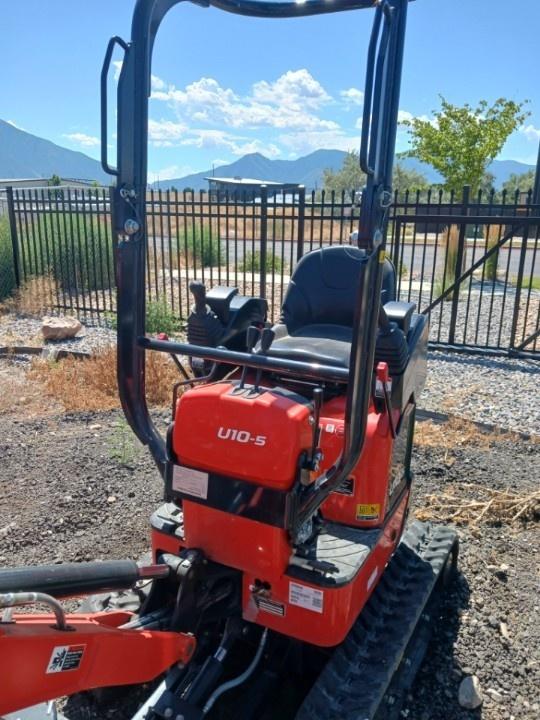

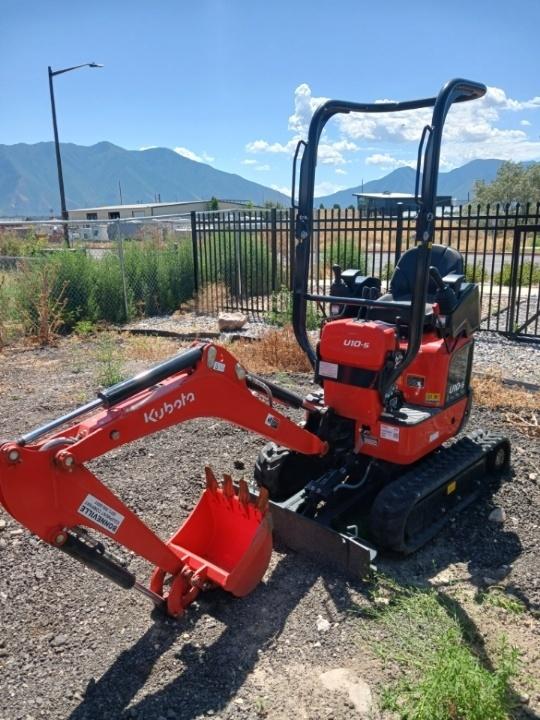

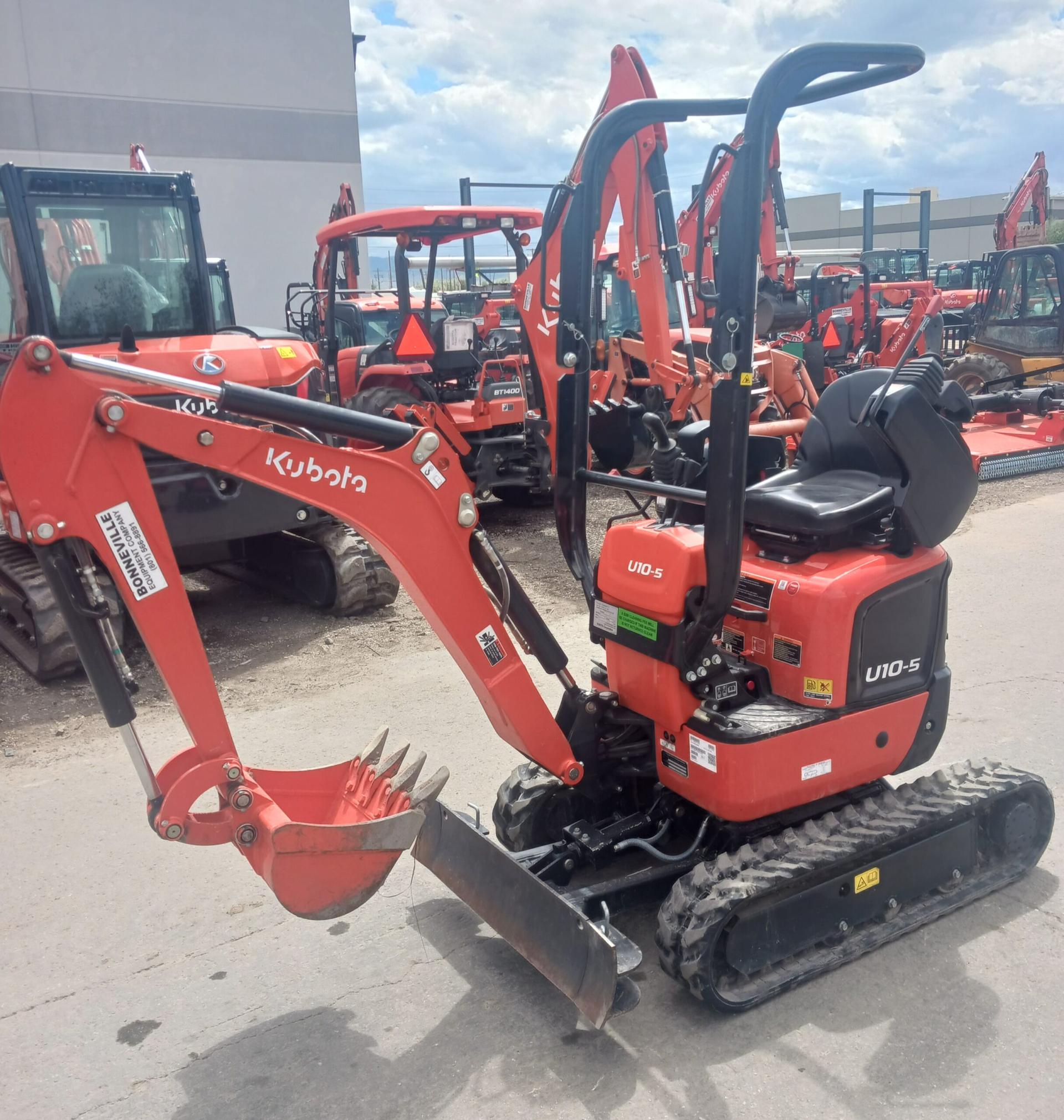

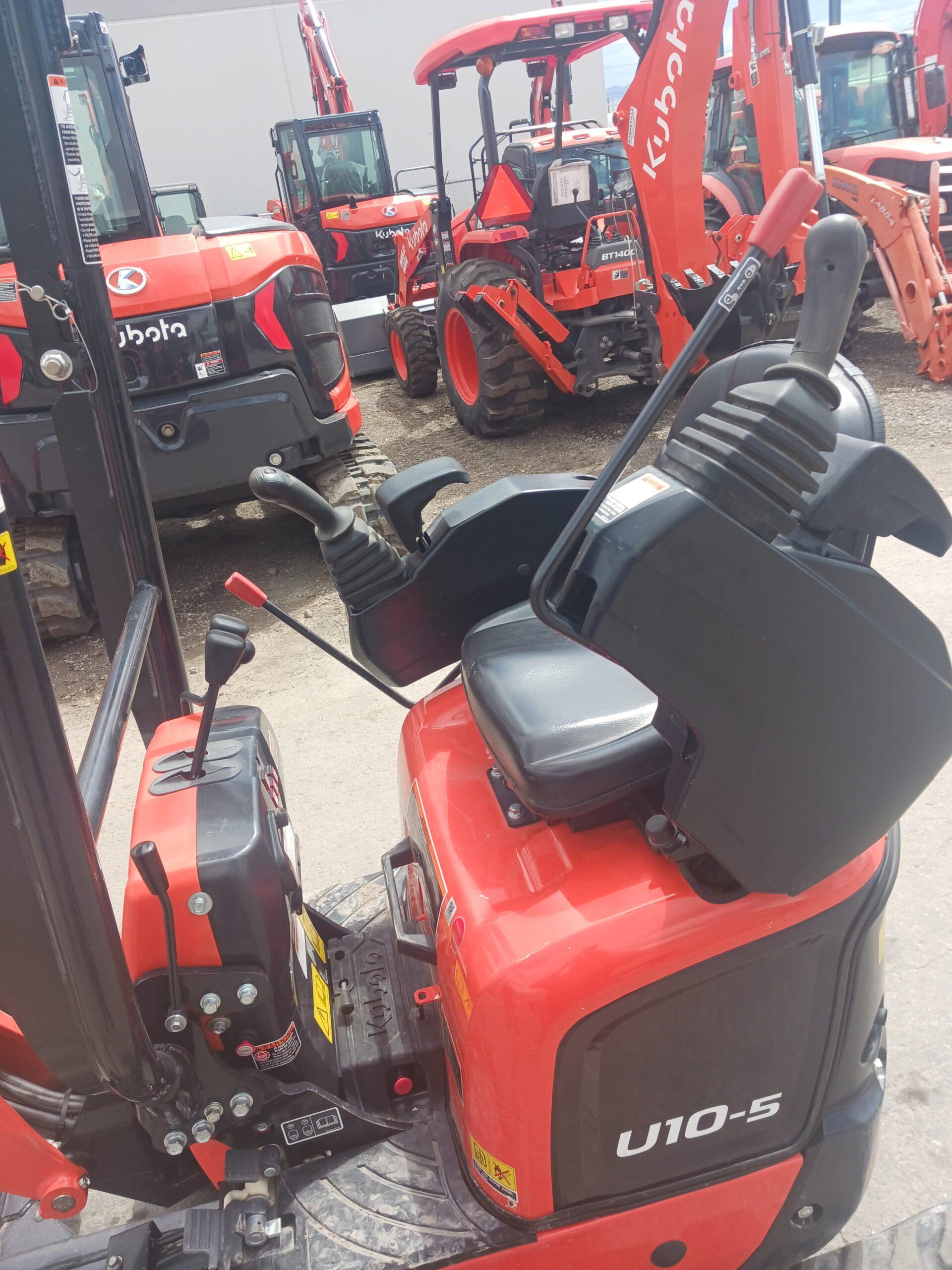

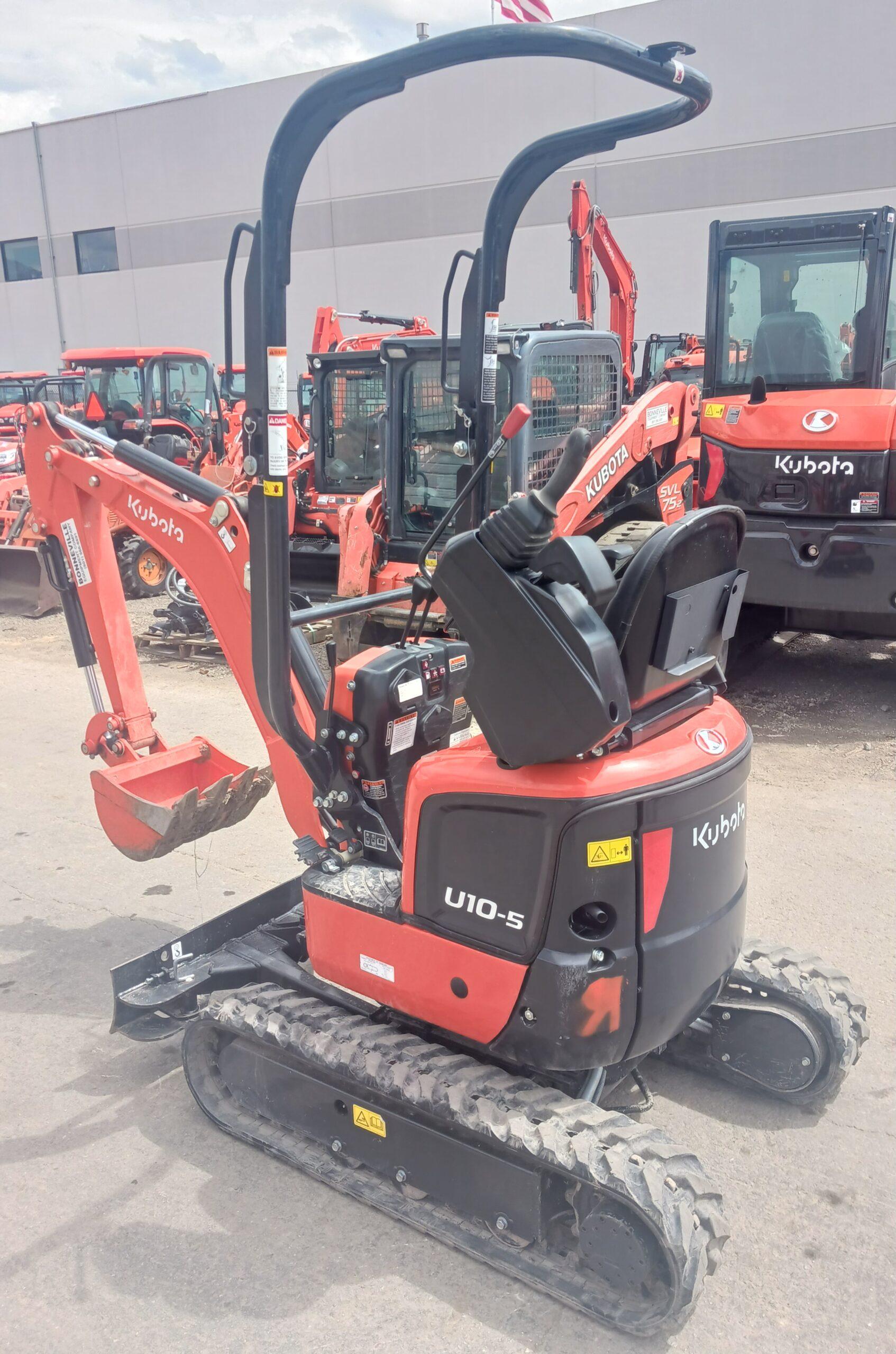

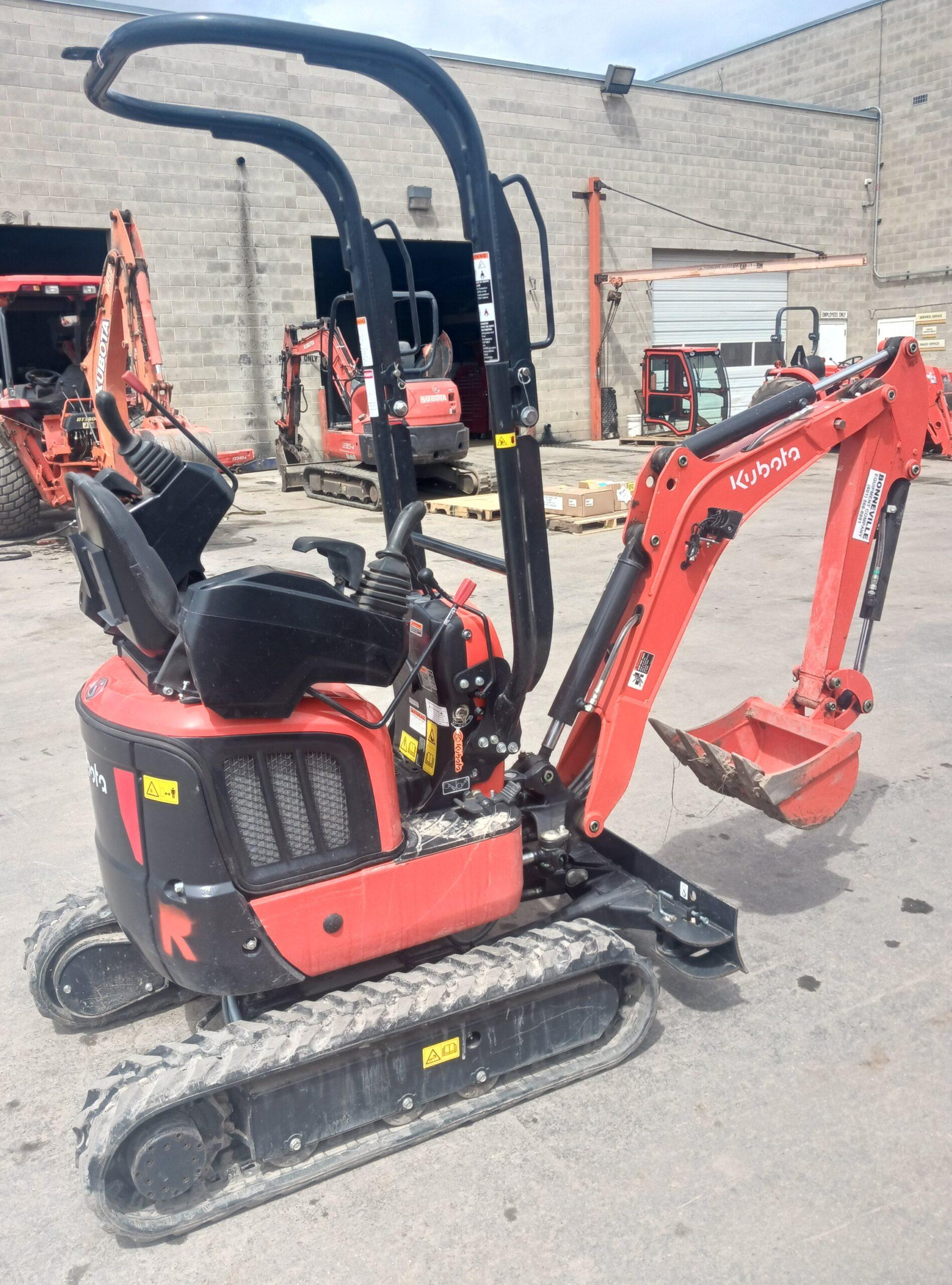

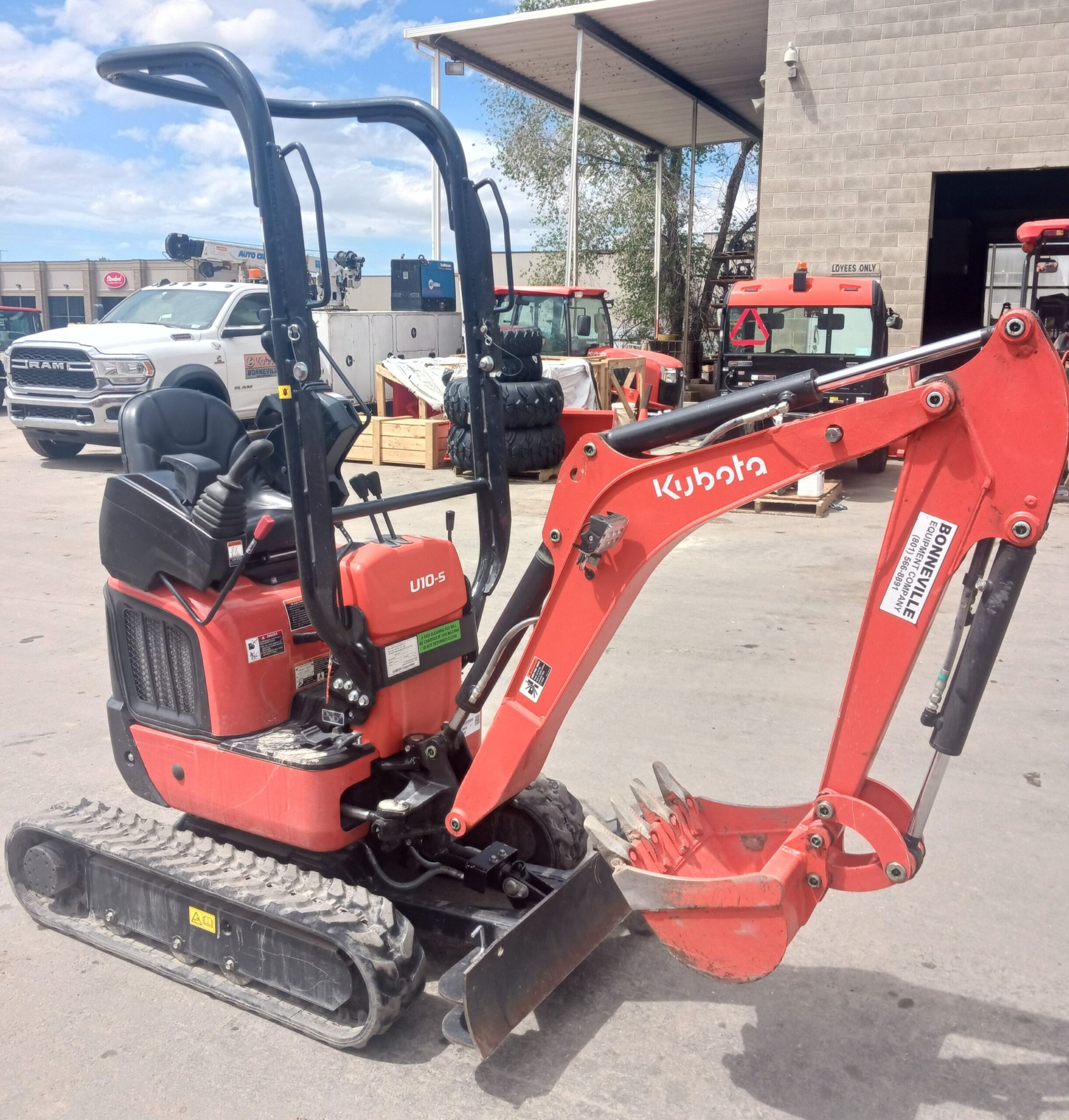

2023 KUBOTA U10-5

The Kubota U10-5 highlights a 10’ digging height and 5’ 11” digging depth, an incredible offering inside its ultra-compact frame. Kubota’s reputation for durability and operator comfort shine through in the U10-5 and you’ll also have access to an adjustable track range and standard two-speed for increased control.

• Engine Model: Kubota D722-E4

• Horsepower (gross): 10.3 HP

• Displacement: 43.8 cu. in.

• Operating Weight: 2646 lbs

• Auxiliary Hydraulics Flow Rate: 5.5 GPM

• Pump Capacity: 2.8 GPM×2

• Overall Length: 9 ft. 9 in.

• Overall Height: 7 ft. 5 in.

• Overall Width: Standard: 3 ft. 3 in. / Narrow: 2 ft. 6 in.

• Blade Width: Standard: 3 ft. 3 in. / Narrow: 2 ft. 6 in.

• Blade Height: 7.9 in.

• Crawler Length: 4 ft. 5 in.

• Ground Clearance: 5.5 in.

• Ground Contact Pressure: 4.2 psi

• Bucket Breakout Force: 2337 lbf

• Arm Breakout Force: 1214 lbf

• Travel Speed: High: 2.5 mph / Low: 1.2 mph

• Swing Speed: 8.3 rpm

• Boom Swing Angle: 55° (both right & left)

  • • Hydraulic Oil Reservoir: 3.3 gal

    • Hydraulic System Capacity: 4.5 gal

    • Fuel Tank Capacity: 3.2 gal
