2020 KUBOTA KX040-4R1A

4 TON COMPACT EXCAVATOR

*FINANCING AVAILABLE

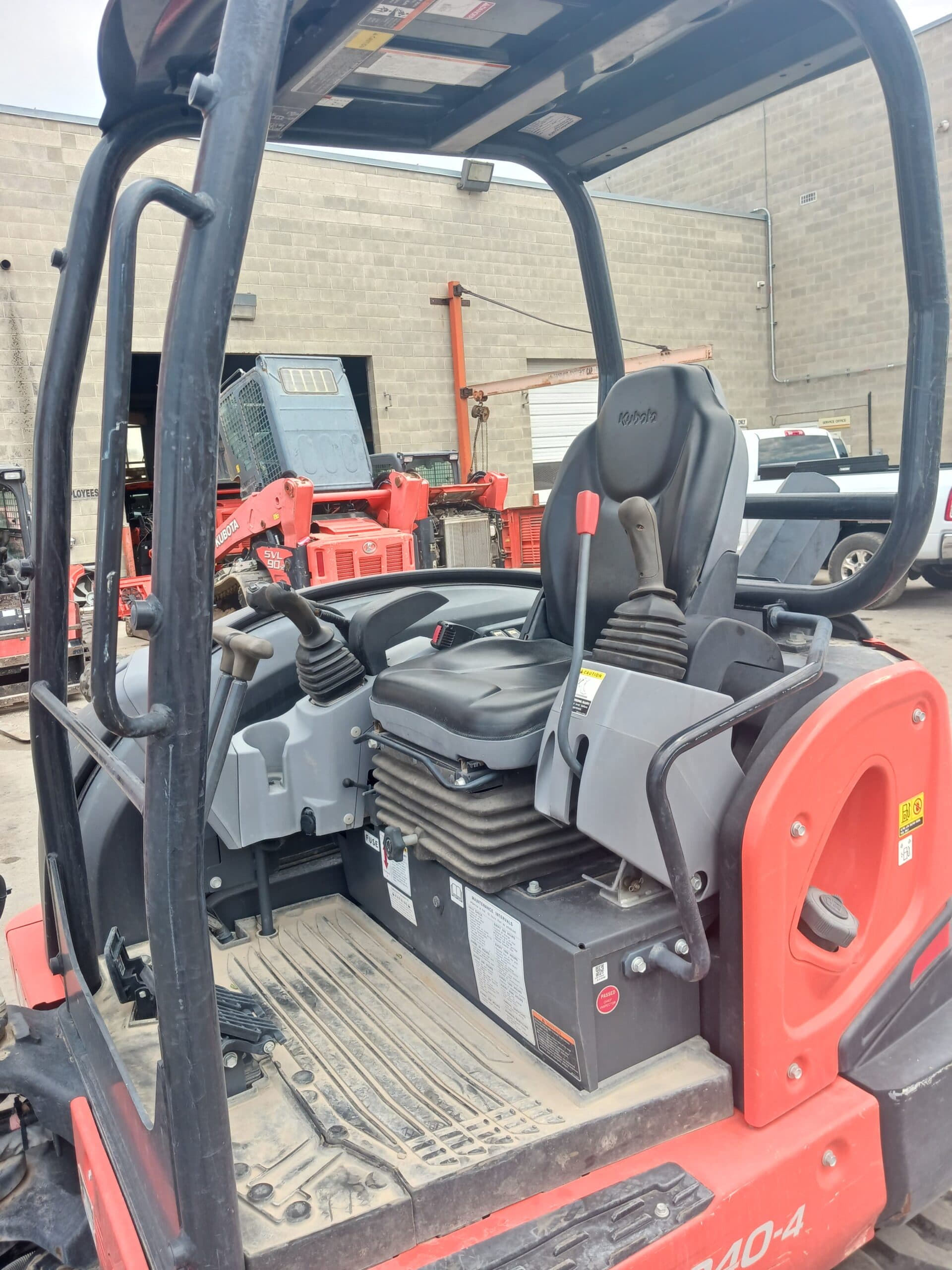

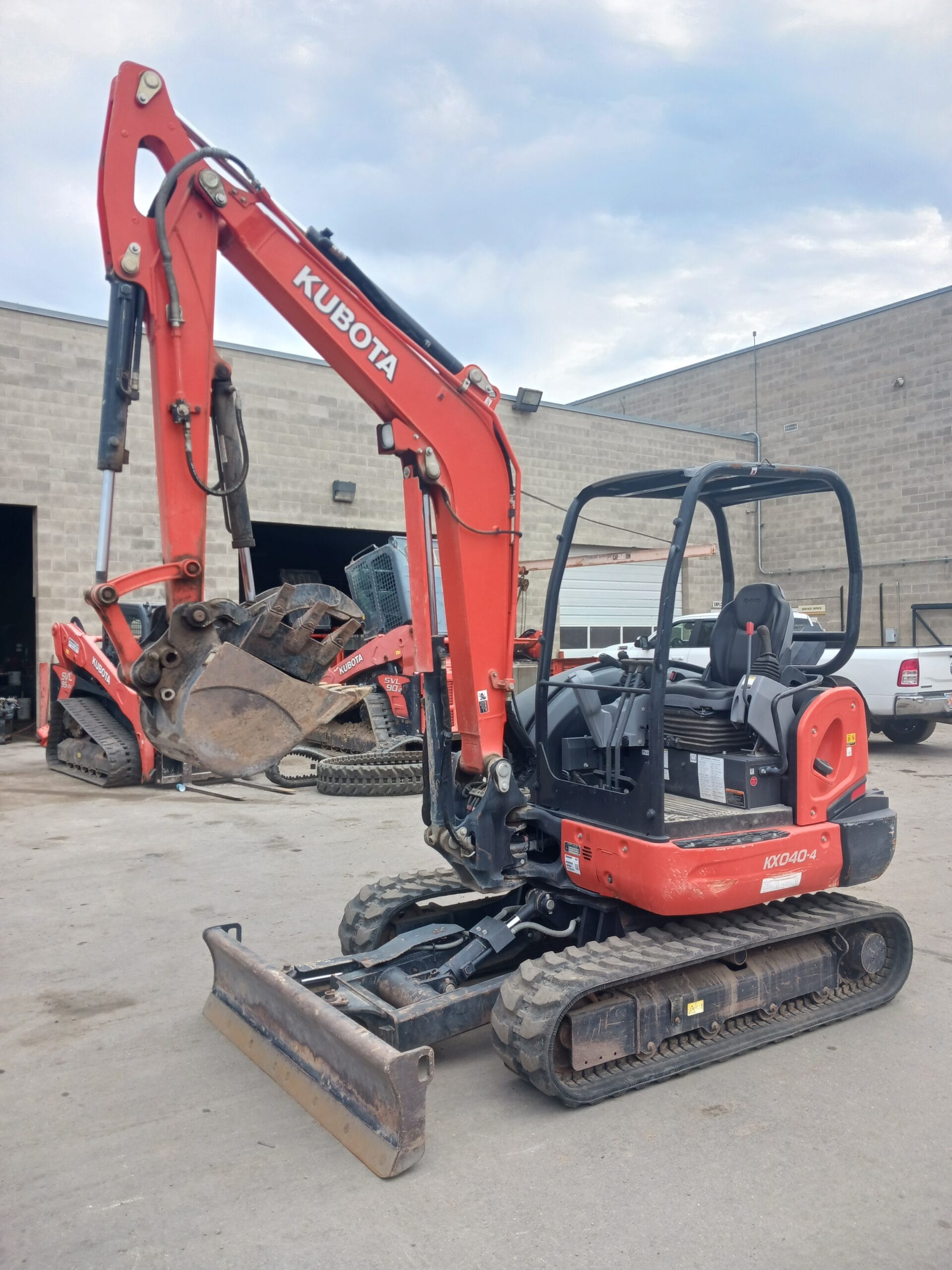

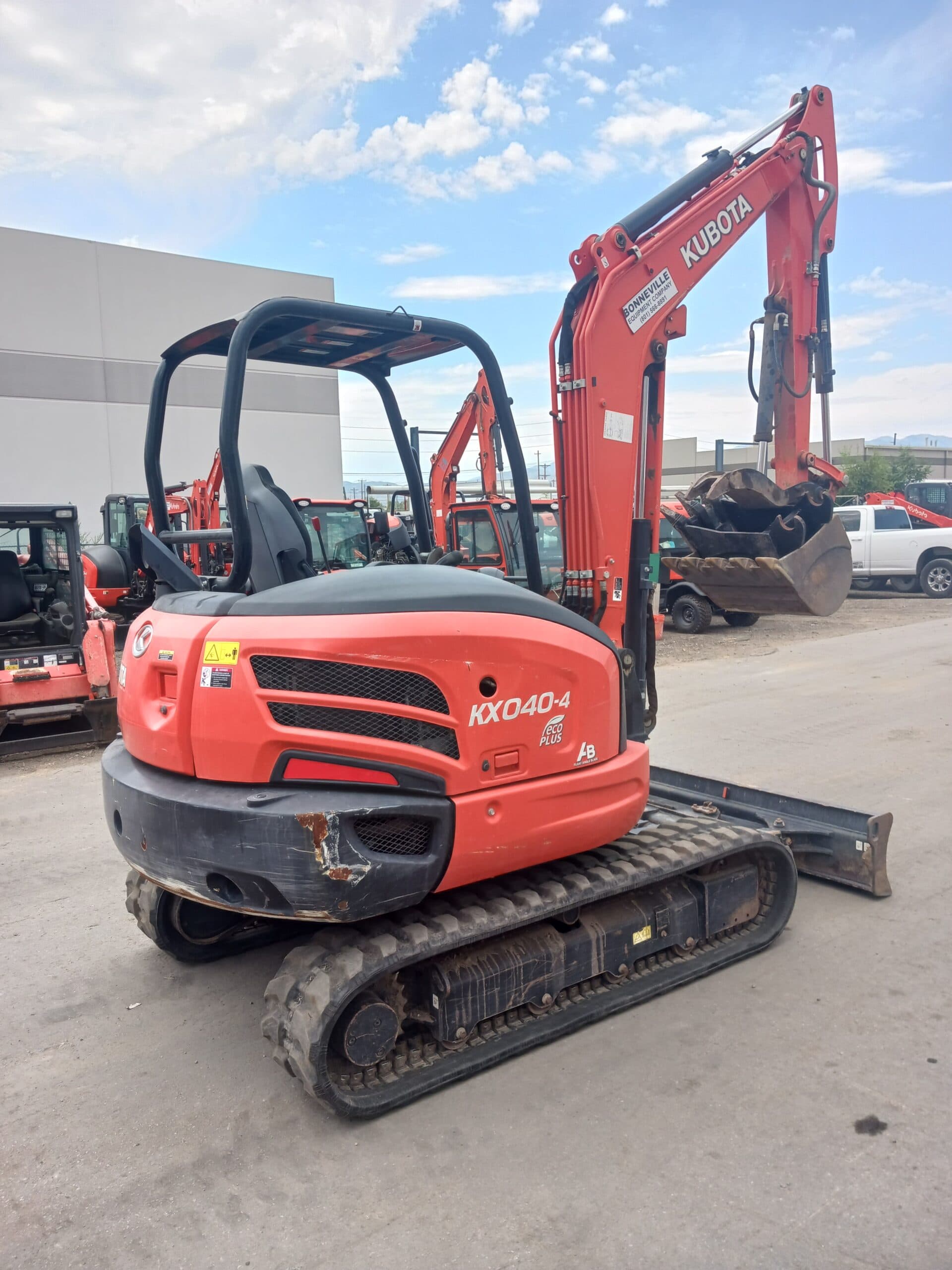

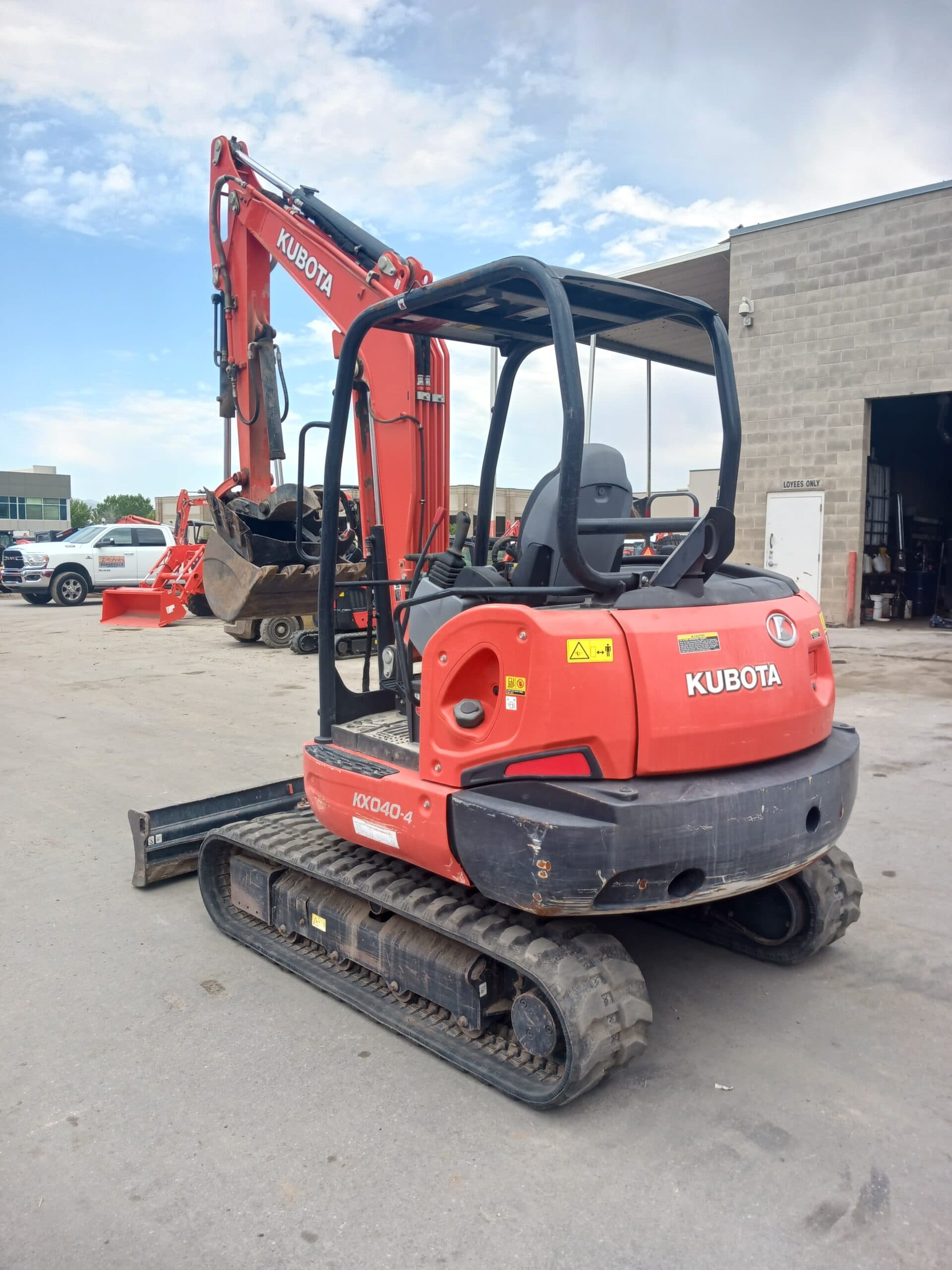

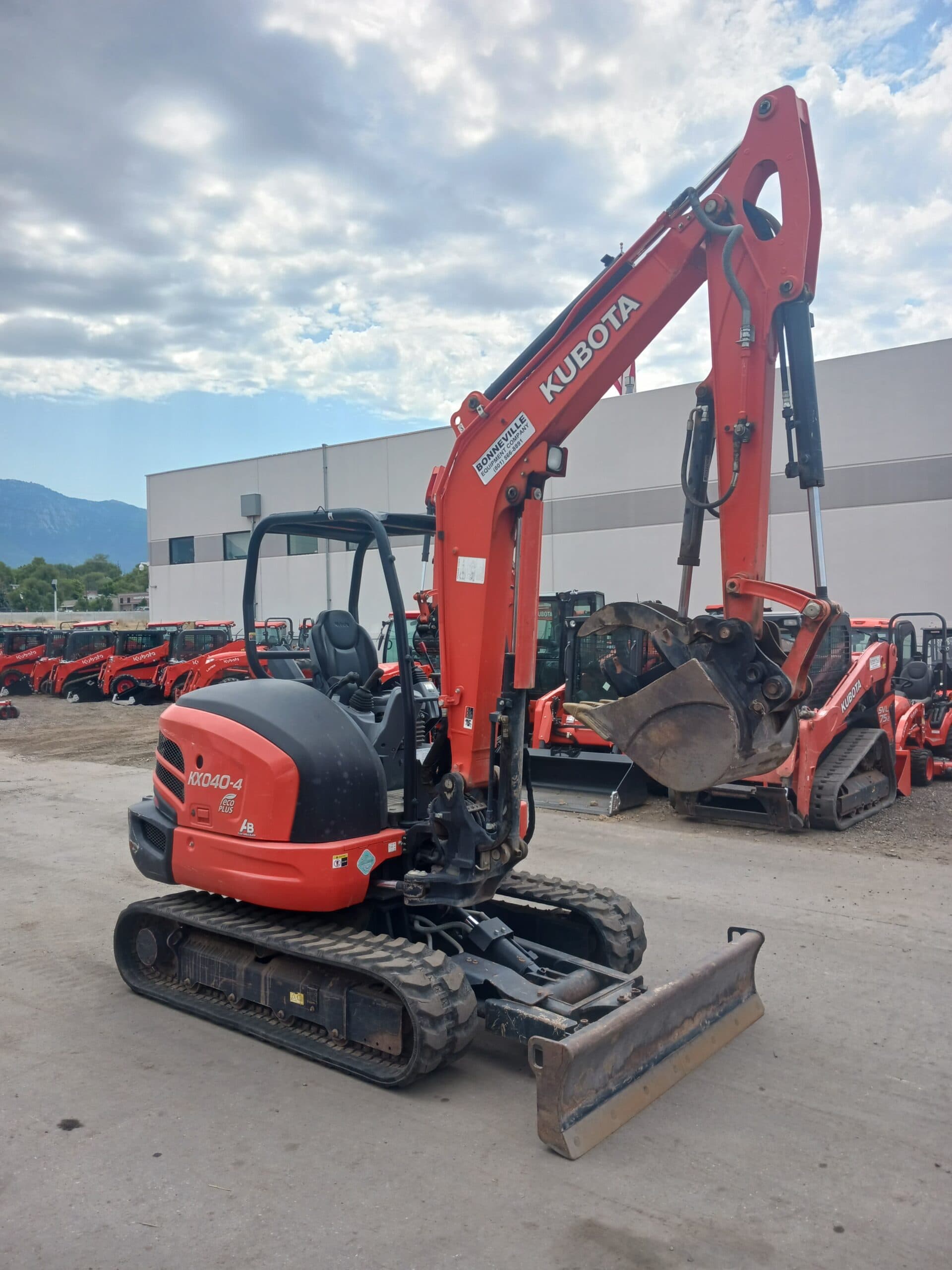

This 2020 Kubota KX040-4R1A compact excavator is a well-equipped, reliable mid-size machine ready to handle a wide range of excavation tasks. With an open ROPS operating station, this unit provides excellent visibility and ease of access for the operator. It’s outfitted with rubber tracks for low ground disturbance, a hydraulic thumb for increased material handling versatility, and an angle dozer blade for efficient backfilling and grading. This machine also includes two single-pin quick attach buckets—a 24″ general-purpose bucket and a 12″ trenching bucket—ideal for a variety of digging applications. This compact excavator is an ideal choice for contractors, landscapers, or municipalities looking for a capable, maneuverable machine with versatile attachments and features. Contact us today, set up a time to come down and take a look!

Key Features & Specifications:

Operating Weight: 9,195 lbs (approx.)
Engine: Kubota D1803-CR-TE4, 3-cylinder turbo diesel, Tier 4 Final
Gross Horsepower: 40.4 HP @ 2,200 RPM
Displacement: 111.4 cu in (1.826 L)
Fuel Tank Capacity: 17.4 gallons
Hydraulic Flow – Main Pump: 26.2 GPM total (17.2 GPM boom/arm/bucket + 9.0 GPM auxiliary)
Auxiliary Hydraulic Circuit: Proportional control with adjustable flow
Working Pressure: 3,481 psi (boom/arm/bucket circuit)
Maximum Digging Depth: 11 ft 3 in
Maximum Vertical Digging Depth: 7 ft 6 in
Max Reach at Ground Level: 18 ft 2 in
Maximum Dump Height: 12 ft 7 in
Minimum Tail Swing Radius: 3 ft 5 in
Boom Swing Angle: 70° left / 55° right
Lifting Capacity Over Front (blade down): Approx. 3,900 lbs at 4 ft over front, ground level
Lifting Capacity Over Side (blade down): Approx. 1,950 lbs at 4 ft over side, ground level
Bucket Breakout Force: 9,535 lbs
Arm (Dipper) Digging Force: 4,112 lbs
Boom Raise: 4.0 seconds
Boom Lower: 2.6 seconds
Arm In: 2.6 seconds
Bucket Dump: 1.9 seconds
Swing Speed: 9.4 RPM
Travel Speed: Low: 1.8 mph / High: 3.1 mph
Track Width: 13.8″ rubber tracks
Ground Pressure: Approx. 4.9 psi
Dozer Blade Type: Angle blade (left and right tilt)
Blade Width: 5 ft 10 in
Blade Height: 15.4 in
Blade Angle: ±25° left/right
Blade Float Function: Yes – for smooth finish grading
Ground Clearance: 12.2 in

Attachments Included:

Hydraulic Thumb: Included – factory-style, ideal for material handling
Quick Attach Buckets (Single Pin): 12″ trenching bucket / 24″ general-purpose bucket
Quick Coupler Type: Single pin, manual coupler system

Operator Station:
