2020 KUBOTA FULL CAB R630

KUBOTA ARTICULATING WHEEL LOADER – HIGH VISIBILITY CAB
*PRICE INCLUDES PALLET FORKS (not pictured) & 74″ BUCKET w/BOLT ON CUTTING EDGE

This 2020 Kubota R630 articulating wheel loader is a versatile, compact powerhouse built for performance and maneuverability. Whether you’re handling material in tight quarters or moving bulk loads, this machine delivers with smooth hydraulic operation, powerful lifting capacity, and Kubota’s renowned reliability. Perfect for construction sites, landscaping, or agricultural use.

The loader is well-maintained and in excellent working condition with regular service intervals followed. Includes an enclosed cab with heat and A/C, making it comfortable to operate in any season. All functions operate as they should, and it’s ready to go to work immediately.

Specifications:

• Engine: Kubota V3307-CR-TE4, 4-cylinder diesel

• Gross Horsepower: 61.1 hp

• Operating Weight: 11,149 lbs

• Rated Operating Capacity: ~3,900 lbs

• Tipping Load Straight w/ Bucket: ~7,700 lbs
• Tipping Load Straight w/ Pallet Forks: ~6,000lbs
• Hinge Pin Height: 10’8″
• Dump Height at Fully Raised Position: 7’9″

• Bucket Capacity: 1.0 cu. yd

• Transmission: Hydrostatic, 4WD

• Max Travel Speed: 12.5 mph

• Articulation Angle: 40°

• Breakout Force (Bucket): Approx. 9,869 lbs

• Hydraulic Flow: 15.8 gpm

• Tires: about 50% life left

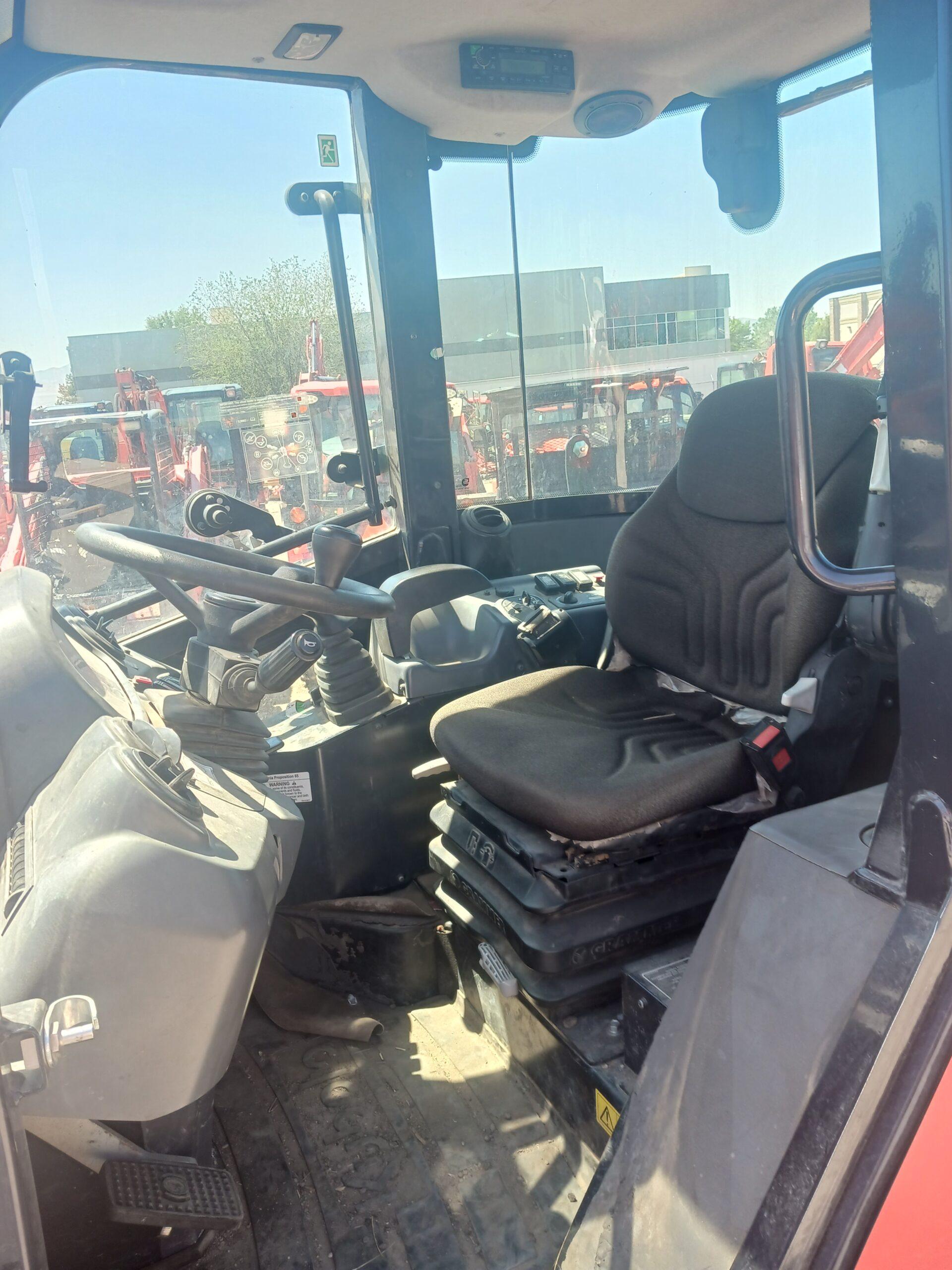

• Cab: Enclosed Cab with Heat & A/C

• Quick Coupler: Hydraulic

• Auxiliary Hydraulics: Yes

Well-suited for lifting, loading, and material handling, the R630 combines rugged performance with compact agility.
